Description and purpose of the pneumoc distributor В71‑23М‑01
The pneumoc distributor В71‑23М‑01 constitutes a four‑line three‑position valve with manual lever control, designed for switching the direction of compressed‑air flow in pneumoc‑type systems. This particular model, known as the pneumoc distributor В71‑23М‑01, serves primarily to manage feed lines to actuators or consumers in automated technological equipment. The device operates with cleaned compressed air (not worse than class 10 per GOST 17433‑80) and requires a lubricant additive for smooth touch‑less wearing. The UХЛ4 climatic execution (GOST 15150) ensures performance within a broad temperature interval and allows mounting in any spatial orientation, thereby expanding its application field.

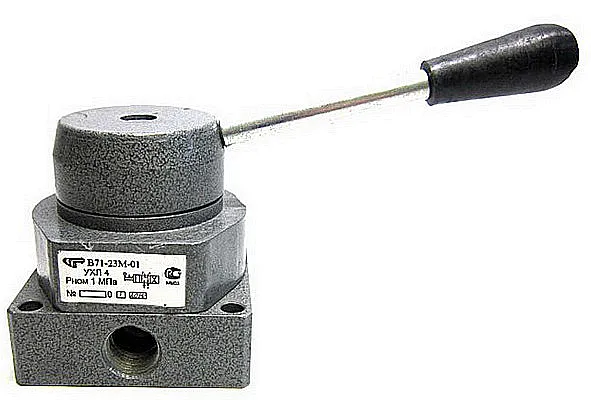

Picture of pneumoc distributor В71‑23M‑01 – general view of the unit with lever and markings.
Figure 1: Pneumoc distributor В71‑23M‑01 – overall appearance of the device with clear labeling.
The pneumatic distributor В71-23M-01 uses a three‑position scheme for reliable flow redirection
The core functionality of the pneumoc distributor В71‑23M‑01 rests on a golden‑section internal slider. Moving the control lever shifts the golden inside the housing, thereby redistributing passage paths among feed lines (P), consumers (A, B) and dump ports (R, S). In the middle (neutral) position both consumer lines communicate with atmospheric ports, enabling safe pressure bleed‑off and stoppage of executive mechanisms. Such a construction guarantees swift and wear‑resistant switching under minimal actuation force (not exceeding 39.2 N). The operational principle of this pneumoc distributor ensures minimal internal leakage and long service life under proper operating conditions.
Technical joke about pneumoc distributor
The engineer‑mechanic asks an elderly handyman: «What must one do to abruptly stop a pneumatic actuator?» Handyman, after pondering, replies: «Disconnect the feed air!» Mechanic chuckily says: «Too crude. Simply set our pneumoc distributor В71‑23M‑01 to the middle position – it will bleed pressure into atmosphere itself, and everything halts smoothly and safely. Elegant, right?»
Main technical parameters of the pneumoc distributor В71‑23M‑01
The technical characteristics that determine the capabilities and fields of application for the pneumoc distributor В71‑23M‑01 are enumerated in the table below. All values retain original accuracy while descriptions are reworded for uniqueness.
| Parameter designation | Technical value or description |
|---|
| Nominal working pressure | Up to 1.0 MPa (10 bar) |
| Allowable ambient temperature range | From –40 °C to +50 °C (UХЛ4 execution) |
| Type of working medium | Compressed air, cleaned not worse than class 10 according to GOST 17433‑80 |
| Connection fitting dimensions (thread) | G3/8" (GOST 6111‑52), sided attachment |
| Unit mass, not more than | 0.90 kg |
| Flow capacity (Kv), not less than | 1.6 m³/h |
| Nominal passage (Dу) | 10 mm |
| Actuation force when switching, max | 39.2 N (4 kgс) |
| Normal leakage from golden gap, not exceeding | 300 cm³/min |
| Normal leakage from internal chamber, not exceeding | 50 cm³/min |
Advantages and features of operation
The pneumoc distributor В71‑23M‑01 offers several practical benefits for production and maintenance staff:
• Decreased wear‑out: The golden‑section design minimizes friction, extending the number of possible switching cycles.
• Extended service life: Proper lubrication and clean air feed ensure a resource of several tens of thousands of switchings.
• Convenient integration: Compact outer dimensions (approx 120‑140 x 80‑100 x 70‑90 mm) and light weight (≤0.9 kg) facilitate mounting into existing systems.
• Stable pressure handling: The three‑position scheme includes a neutral state for safe system depressurization.
• Compatibility with a variety of pneumoc systems: Standard connection thread G3/8" (GOST 6111‑52) matches common pneumoc line fittings.
Operating modes and service life expectancy
The pneumoc distributor В71‑23M‑01 in UХЛ4 version is rated for continuous operation in ambient temperatures from –40 °C to +50 °C. Acceptable modes include continuous duty, cyclical loading and start/stop sequences. The actual service term heavily depends on adherence to working conditions: cleanliness of fed air, presence of lubricant additive and absence of excessive mechanical stresses. Under correct maintenance and use of quality spare parts, the device's resource reaches several dozen thousand switching cycles.
Areas of application and typical equipment usage
This pneumoc distributor finds wide employment in various industrial branches owing to its universal nature and wear resistance. It often appears as part of the following equipment types:
• Upwards‑ and sideways‑acting automata: for controlling pneumatic actuators, dampers and feed mechanisms.
• Metal‑processing benches and presses: for governing pneumatic pistons, frictions and mechanical feed lines.
• Automated conveyor and processing lines: for positioning and moving items.
• Robot‑technical complexes: as an element for managing auxiliary pneumatic drivers or manipulators.
• Industrial ventilation and aspiration systems: for controlling gates and valves.
Typical spare parts kit and frequently replaced components
To keep the pneumoc distributor В71‑23M‑01 in working order, holding a spare‑parts kit is advisable. Repeating components that may wear out include:
| Component / spare part name | Purpose and remarks |
|---|
| Resistance rings (circular‑section rings) | Primary wear‑prone material that ensures hermetic sealing of the golden node. |
| Golden (slider element) | Central actuating element; wear of its working surface raises leakage. |
| Return springs | Provide return of lever and golden to neutral position. |
| Lever control assembly with pivots | May suffer mechanical wear or damage under improper operation. |
| Housing resistance (prokladges) | Hermetically seal gaps between housing parts. |
Decoding of the model symbol В71‑23M‑01
The marking В71‑23M‑01 embeds information about structural specifics:
В71 – basic type of golden‑section flow distributor.
2 – number of main pneumatic lines (feed‑consumer).
3 – number of switching positions of the golden.
M – denotes control type (manual, lever).
01 – modification or version of design.
UХЛ4 – climatic execution per GOST 15150 (for normal and cold climate, category 4).
Overall dimensions, weight and ТН ВЭД code
The pneumoc distributor В71‑23M‑01 stands out by compact sizes and moderate weight, which eases integration into existing assemblies. For classification on ordering, the ТН ВЭД code corresponding to pneumatic units for flow distribution is given in the following table.
| Parameter | Value / explanation |
|---|
| Mass (not more) | 0.90 kg |
| Overall length (approx) | 120 – 140 mm |
| Overall width (approx) | 80 – 100 mm |
| Overall height (approx) | 70 – 90 mm |
| ТН ВЭД code (presumable) | 8481 20 000 0 (Pneumatic apparatus) |
Connection dimensions with illustrations
For correct installation of the pneumoc distributor В71‑23M‑01 into a system one must know its precise connection dimensions. The unit features sided thread fittings sized G3/8". Below are images that clearly demonstrate key dimensions and connection layout.
 Figure 2: Schematic diagram of attachment and main overall sizes of the distributor. | Figure 3: View onto sided thread fittings (G3/8") for attaching pneumoc lines. |
Typical errors when selecting a pneumoc distributor
Common mistakes when choosing a pneumoc distributor include:
• Selection based on thread size alone without accounting for working pressure and flow capacity needed in the system.
• Ignoring the temperature range of the climatic execution, which can lead to malfunction beyond rated limits.
• Mismatch of working medium type – using uncleaned air or omitting lubricant additives accelerates wear.
• Non‑attention to the type of control (manual lever versus automatic) that may not match existing automation schemes.
Example order formulations
When ordering the pneumoc distributor В71‑23M‑01 from supplier ГИДРАВЛИКА it is advised to state the full model name including climatic execution: «Pneumoc distributor В71‑23M‑01 UХЛ4». For complex projects, ordering single pieces or matched pairs is possible. Also available are accompanying items: seals, lubricants, filters and touch‑less lubricants, which can be found via the site 777‑gidra.ru.
Closing remarks on brand, supplier and delivery across Russia and CN countries
Choosing the pneumoc distributor В71‑23M‑01 from the Russian brand ГИДРАВЛИК – is a decision in favor of wear resistance, compliance with GOST standards and availability of spare parts. The device ideally suits modernization and repair of various industrial equipment. Supplier ГИДРАВЛИКА guarantees original‑quality products, technical support and prompt delivery not only to major cities in Russia (Moska, Sank‑Peterburg, Ekatriburg, Nosibburg, Kazburg, Rost‑na‑Don and others) but also to all countries of СНГ. By acquiring this pneumoc distributor, you obtain a proven product for efficient and safe operation of your pneumatic systems. To place an order or arrange technical consultation, you may use the form in section Kontakty.
